Heavy Duty Diesel Engine (Engine Research Center – Univ. of Wisconsin-Madison)

Case Description

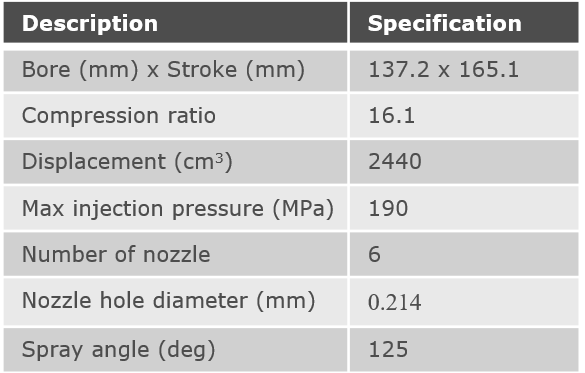

·   Simulation of a 2.44 liter diesel engine from Caterpillar 3410E.

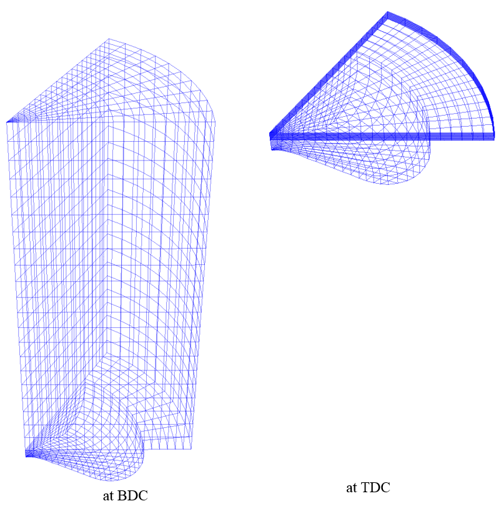

  • Computational Mesh

·   About 5,460 structured hexahedral cells

·   45° sector mesh with periodic boundary condition

  • Results

·  Movie of the temperature and fuel droplets with moving piston head.

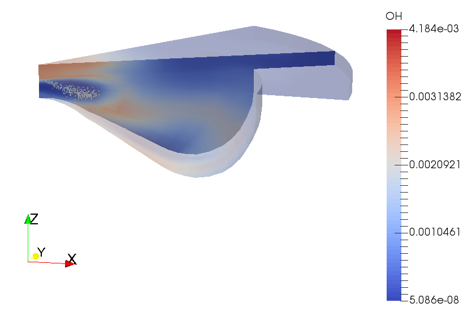

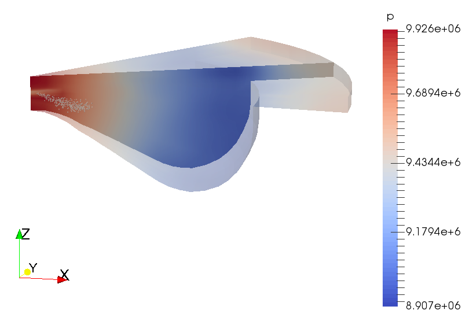

·  Distributions of pressure and OH mass fraction at 6 degree (ATDC)
